How to Add Router and Switch Images to EVE-NG: Legal Setup + QEMU Naming Guide

Quick answer: To add images to EVE-NG, upload your .qcow2 or .image file to the right subfolder under /opt/unetlab/addons/qemu/, name the folder with the correct prefix, then run the fix_permissions command. Miss any of those three steps and the device won’t appear in your node picker.

That’s the short version.

The longer story is that EVE-NG won’t tell you what went wrong. You upload a Cisco image, open the web interface, go to add a node, and nothing shows up. You SSH in, check the folder. File is there. You hit F5. Still nothing. Turns out the folder was named iosv-15.9 instead of vios-15.9. One character swap. Most people spend 30 to 45 minutes on this before they find it.

Once you know the naming convention, it clicks fast. This guide covers all three image types EVE-NG supports, where to get Cisco and vendor images legally, the QEMU folder naming table, the upload process via SCP and WinSCP, and the fix_permissions command you must run after every upload.

If you haven’t set up EVE-NG yet, start with our EVE-NG VMware Workstation installation guide first, then come back here.

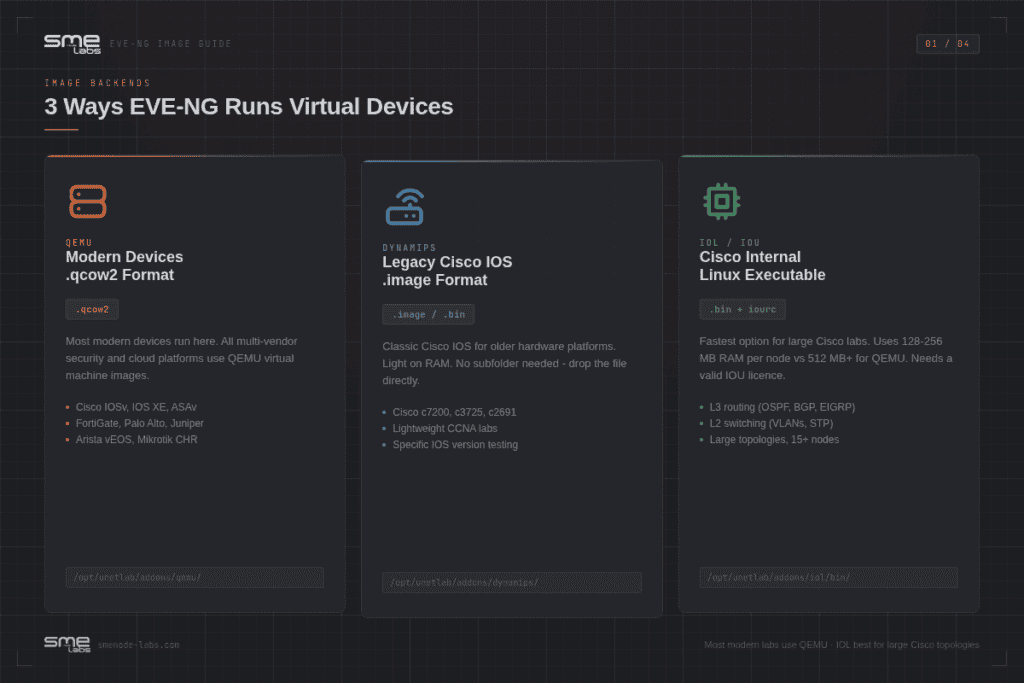

EVE-NG Image Types: QEMU, Dynamips, and IOL

EVE-NG runs devices using three different emulation backends. Which one you use depends on the device.

QEMU is the main one. Most modern devices, including Cisco’s IOSv, IOS XE, IOS XR, ASAv, NX-OS, and all multi-vendor platforms (Palo Alto, Juniper, FortiGate, Arista), run as QEMU virtual machines with .qcow2 disk images. This is what the rest of this article focuses on.

Dynamips handles legacy Cisco IOS. Classic router images like c7200, c3725, and c2691 run as .image or .bin files stored in /opt/unetlab/addons/dynamips/. No subfolder needed. If you’re studying older CCNA topics or want lightweight labs that don’t need much RAM, Dynamips images work fine.

IOU/IOL is Cisco’s internal Linux-based router and switch software. These are .bin executables that run natively on the EVE-NG host. IOL is fast and very light on memory, which makes it popular for large CCNA topologies. The catch? You need a valid IOU license. That license is bound to the hostname of your EVE-NG server. If you rename the host later, the license breaks and your IOL devices die within seconds of starting.

So which should you use?

For CCNA and CCNP routing and switching practice, IOL is the best choice if you can get a license. For security labs with ASAv, FortiGate, or Palo Alto, you need QEMU. For running a specific older IOS version quickly, Dynamips works.

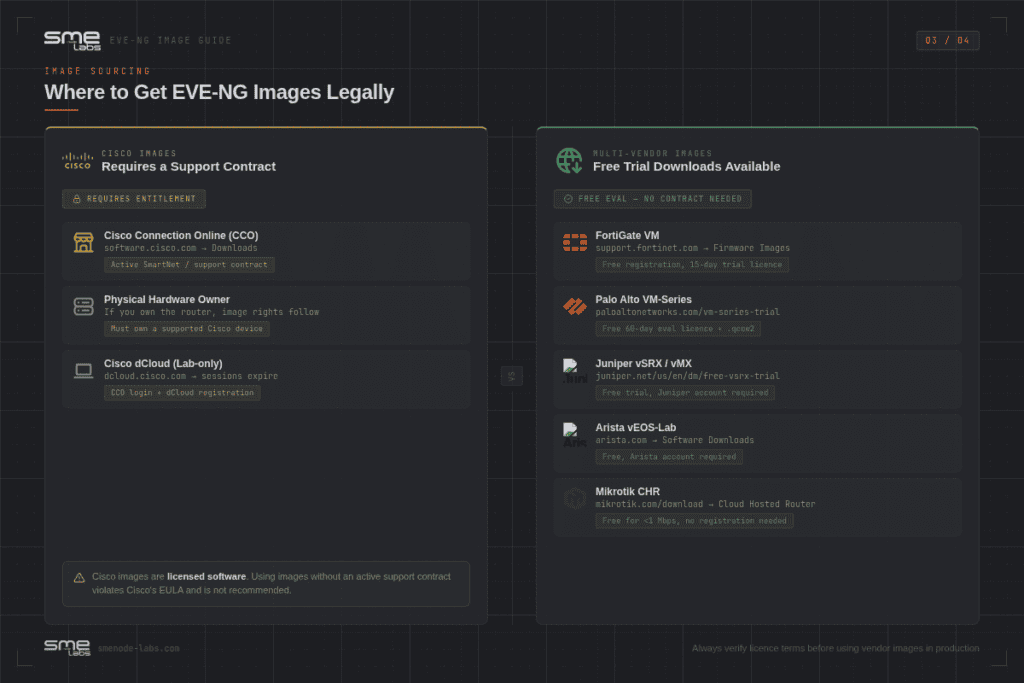

Where to Get EVE-NG Images Legally

This is the part people avoid talking about. Let’s be straight.

Cisco IOS images are copyrighted software. You’re supposed to have an active support contract to download them from Cisco’s software download portal. Most home lab users don’t have that.

Here’s what’s actually available legally:

Cisco DevNet Sandbox gives you free access to hosted labs running real Cisco devices. It’s not a download source, but it lets you practice Cisco configurations without owning any images locally.

Your own hardware is the cleanest path. If you own a physical Cisco router or switch with a valid license, you’re entitled to IOS software updates for that specific platform. Downloading the IOS for your own device and running it in EVE-NG for testing is generally considered acceptable, though Cisco’s EULA is worth reading yourself.

Multi-vendor trial images are much easier to get legitimately:

• FortiGate VM is available from the Fortinet support portal with a free registered account. You get a 14-day evaluation licence, and the image runs fine in EVE-NG.
• Palo Alto VM-Series has a free evaluation download from Palo Alto Networks with a registered account.
• Juniper vSRX is available through Juniper’s free trial programme.
• Arista vEOS is downloadable from Arista’s software portal with a free account.
• Mikrotik CHR (Cloud Hosted Router) is a free download from mikrotik.com and runs under a trial licence in EVE-NG.

One thing worth being clear about: extracting images from the Cisco CML refplat ISO and using them in EVE-NG breaks Cisco’s CML EULA. The licence for CML images explicitly prohibits use outside the CML platform. It’s a common workaround people mention online, but it’s not allowed.

For Cisco images, the practical path for home lab use is a used Cisco ASA or router from eBay for $30 to $80, a legitimate firmware download for that device, and running it in your lab.

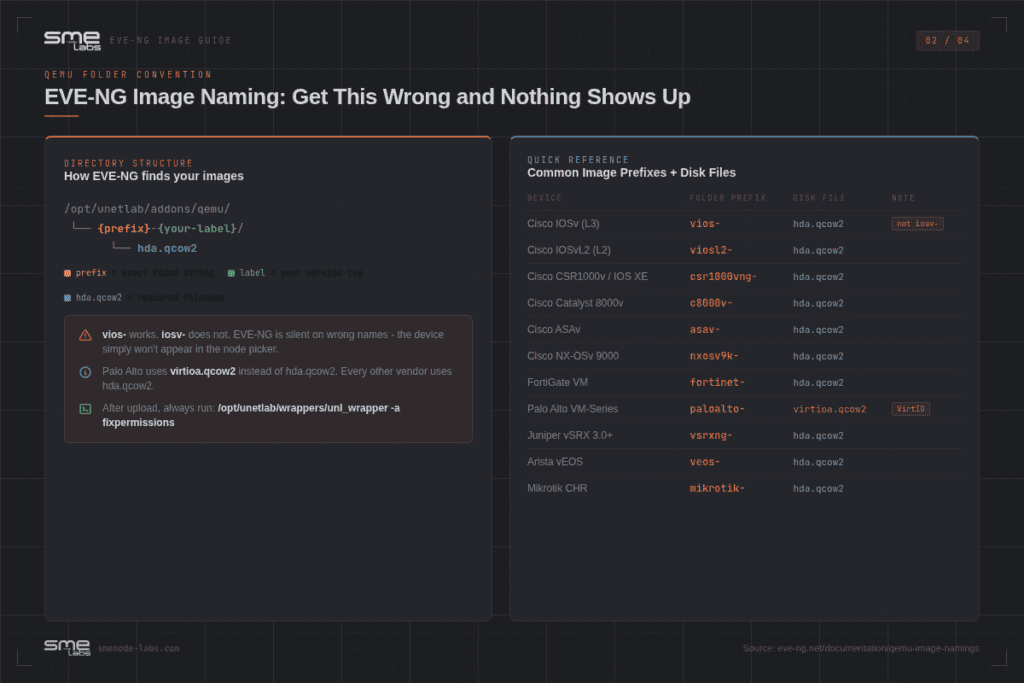

The QEMU Naming Convention: How EVE-NG Finds Your Imagesg

This is the part that trips people up most.

EVE-NG reads image folders from /opt/unetlab/addons/qemu/. Each device image lives in its own subfolder. The folder name tells EVE-NG which device template to use, and the prefix before the hyphen must match exactly what EVE-NG expects.

The format is: {prefix}-{your-label}/hda.qcow2

The prefix is not something you choose. It’s a fixed string from EVE-NG’s template list. Get it wrong and the device won’t appear in the node picker. No error message. Just silence.

Mini-story: Ahmad was setting up a CCNA lab in EVE-NG for the first time. He had his Cisco IOSv image ready, uploaded it, created the folder as iosv-adventerprise-15.9/, and ran fix_permissions. Opened EVE-NG. No Cisco router in the node list. He spent an hour re-uploading, checking SHA256 checksums, trying different browsers. The image was fine. The folder name was the problem. EVE-NG expects vios- not iosv-. Renamed the folder. Device appeared immediately.

Here’s the complete reference table for common Cisco and multi-vendor images:

Device	Required Folder Prefix	Disk File	Notes
Cisco IOSv (L3 router)	vios-	hda.qcow2	Note: it’s vios, not iosv
Cisco IOSvL2 (L2 switch)	viosl2-	hda.qcow2
Cisco CSR1000v / IOS XE	csr1000vng-	hda.qcow2
Cisco Catalyst 8000v	c8000v-	hda.qcow2
Cisco IOS XRv 9000	iosxrv9k-	hda.qcow2
Cisco ASAv	asav-	hda.qcow2
Cisco NX-OSv 9000	nxosv9k-	hda.qcow2
FortiGate VM	fortinet-	hda.qcow2
Palo Alto VM-Series	paloalto-	virtioa.qcow2	Uses VirtIO disk, not hda
Juniper vSRX 3.0+	vsrxng-	hda.qcow2
Juniper vSRX 12.x (FireFly)	vsrx-	hda.qcow2
Arista vEOS	veos-	hda.qcow2
Mikrotik CHR	mikrotik-	hda.qcow2
Checkpoint GAIA	cpsg-	hda.qcow2
F5 BIG-IP LTM VE	bigip-	hda.qcow2

A correct folder structure looks like this:

/opt/unetlab/addons/qemu/
├── vios-15.9.3M6/
│   └── hda.qcow2
├── viosl2-15.2.4.55E/
│   └── hda.qcow2
├── csr1000vng-17.3.3/
│   └── hda.qcow2
├── paloalto-10.1.1/
│   └── virtioa.qcow2
└── fortinet-7.0.5/
    └── hda.qcow2

A few things worth noting:

The version label after the hyphen can be anything. vios-mylab and vios-15.9.3M6 both work. The prefix before the hyphen must be exact.

Palo Alto uses virtioa.qcow2 as the disk file instead of hda.qcow2. That’s not a typo. PAN-OS requires the VirtIO disk controller. If you name the file hda.qcow2 for a Palo Alto image, the VM will fail to start.

If a device needs multiple disk images (like Juniper vMX, which has a VCP component and a VFP component), the second disk is hdb.qcow2.

The EVE-NG documentation page for QEMU image namings has the full official list. Worth bookmarking if you’re adding a lot of devices.

How to Upload EVE-NG Images via SCP or WinSCP

You have two good options: SCP from the command line or WinSCP on Windows.

Option 1: SCP (Linux, Mac, or Windows with OpenSSH)

SSH into your EVE-NG host and create the folder first. Then copy the file from your local machine.

# Step 1 - Create the folder on EVE-NG
ssh root@<your-eve-ip>
mkdir -p /opt/unetlab/addons/qemu/vios-15.9.3M6/
exit

# Step 2 - Copy the image from your local machine (run in a new terminal)
scp vios-adventerprisek9-m.vmdk.SPA.159-3.M6.qcow2 \
  root@<your-eve-ip>:/opt/unetlab/addons/qemu/vios-15.9.3M6/hda.qcow2

Note the rename at the destination. The source file has a long descriptive name from Cisco. The destination must be hda.qcow2. You can handle the rename in the SCP command like the example above, or log in after upload and rename it with mv.

Option 2: WinSCP (Windows)

WinSCP is the easiest path for Windows users. Connect to your EVE-NG host via SFTP or SCP on port 22. Navigate to /opt/unetlab/addons/qemu/, create a new folder with the correct prefix, drag and drop the image file into that folder, then right-click it inside WinSCP and rename it to hda.qcow2.

WinSCP transfer speeds depend on your network. A 500 MB .qcow2 file over a gigabit LAN takes about a minute. Over WiFi on a congested home network, plan for 3 to 5 minutes.

Run fix_permissions After Every Image Upload

This step is not optional.

After every image upload, SSH into your EVE-NG host and run:

/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

This resets file ownership and permissions for everything under /opt/unetlab/addons/. If you skip it, EVE-NG may find the folder and show the device in the picker, but when you start it, you’ll get a permission denied error or the node will fail silently.

Mini-story: Priya uploaded three FortiGate images in one session. She ran fix_permissions after the first image, opened a lab, and FortiGate worked. She added the second and third images later without running fix_permissions again. Those two showed up in the node picker but crashed immediately on start. Ran fix_permissions. Both worked.

Run it every time you add or rename an image. It takes about 5 to 15 seconds.

Cisco Images in EVE-NG: What Each One Is For

If you’re studying for CCNA or CCNP, here’s what each Cisco image type actually does inside EVE-NG.

vios (IOSv) is a lightweight Cisco IOS-based L3 router. Good for routing protocols: OSPF, EIGRP, BGP, RIPv2. Uses maybe 256 to 512 MB RAM per instance. Ideal for large topologies on a 16 GB or 32 GB machine.

viosl2 (IOSvL2) is a Cisco IOS-based L2/L3 switch. Supports VLANs, trunking, STP, EtherChannel. This is the image you want for any switching lab.

csr1000vng (CSR1000v) is a full IOS XE software router. More feature-rich than IOSv. Supports modern IOS XE features including SD-WAN components, RESTCONF, NETCONF, and more complex NAT scenarios. Uses more RAM, typically 4 GB per instance.

c8000v (Catalyst 8000v) is the newer IOS XE SD-WAN capable platform. Useful for CCNP Enterprise or any SD-WAN study.

asav is the Cisco ASAv firewall. Needed for any ASA security lab, AnyConnect practice, or CCNP Security content involving ASA policies.

nxosv9k is Cisco NX-OS for datacenter labs. Good for CCNP Data Centre or CCIE Data Centre content.

For CCNA practice with a limited RAM machine, stick with vios- and viosl2-. They’re the lightest options that cover 90% of the CCNA 200-301 exam topics.

If you want a pre-built CCNA lab set with topology files matched to exam objectives, our CCNA Lab Workbook includes 40+ exercises with step-by-step configs and an EVE-NG image guide so you know exactly which images you need for each lab.

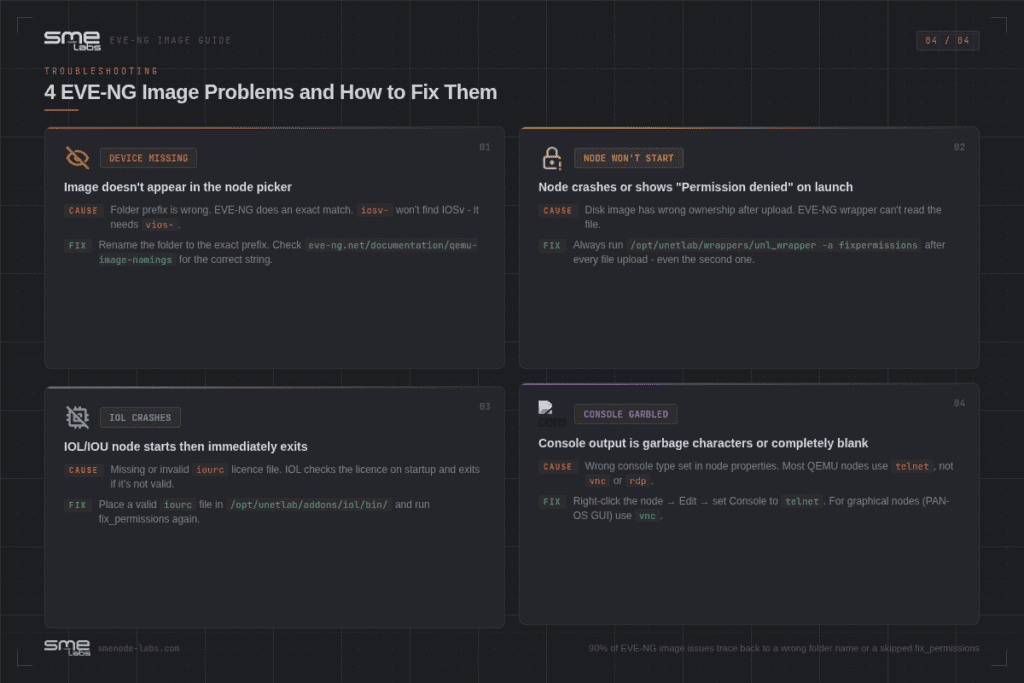

Common Image Errors and How to Fix Them

Device doesn’t appear in the node picker after upload

Check the folder prefix first. Compare your folder name character by character against the naming table in this article. iosv- won’t work where vios- is expected. Also check that the disk file inside the folder is named correctly (hda.qcow2 for most devices, virtioa.qcow2 for Palo Alto).

Device starts then immediately stops or crashes

For IOL devices, the IOU licence is probably the issue. The licence is bound to your EVE-NG hostname and domain name. If you changed the hostname after generating the licence, regenerate it with the current hostname.

For QEMU devices, check that nested virtualization is working. QEMU nodes need hardware virtualization passed through to the EVE-NG VM. On VMware Workstation, that’s the “Virtualize Intel VT-x/EPT” checkbox in the VM settings. On bare metal, it’s enabled in BIOS under Intel VT-x or AMD-V.

Permission denied when starting a node

Run fix_permissions. That’s almost always the cause.

Console shows garbage characters or no output

The console type might not match what the device expects. Most Cisco routers use telnet. Palo Alto and FortiGate use VNC or the HTML5 console. Right-click the node in EVE-NG, go to Edit, and check the console setting.

Raw VMDK file won’t upload or work

Some vendors package their images as VMDK (VMware format) instead of qcow2. You need to convert before uploading:

qemu-img convert -f vmdk source-image.vmdk -O qcow2 hda.qcow2

Run that on your local machine or on the EVE-NG host, then move the output hda.qcow2 to the right folder.

Dynamips and IOL Images: Quick Setup

These work differently from QEMU images. Worth knowing if you’re using legacy Cisco IOS.

Dynamips images go in /opt/unetlab/addons/dynamips/ as .image or .bin files. No subfolder needed. Drop the file in as-is (e.g., c7200-adventerprisek9-mz.152-4.S7.image). Run fix_permissions. EVE-NG picks them up automatically.

IOL images go in /opt/unetlab/addons/iol/bin/ as executable .bin files. Two separate files exist: one for Layer 3 routing and one for Layer 2 switching. You also need an iourc licence file in the same folder. The licence is tied to your EVE-NG hostname, so keep that consistent.

IOL is worth using for large Cisco labs. It uses far less RAM than QEMU IOSv. A 15-router OSPF topology that needs 12 GB RAM with IOSv might need only 2 to 3 GB with IOL. The tradeoff is that IOL doesn’t support all IOS features, and modern IOS XE or SD-WAN topics aren’t available.

For large CCNA practice labs where you want many routers and switches running at once, IOL is honestly the better choice if you can source a licence.

Building Your First Lab After Adding Images

Once your images are uploaded and fix_permissions is done, here’s the quick path to your first EVE-NG lab:

1. Log in to the EVE-NG web interface at http://<eve-ip>/
2. Click the hamburger menu, then Manage, then Labs
3. Create a new lab or open an existing one
4. Right-click the canvas and select Add a new node
5. Pick your device from the list (e.g., vios for Cisco router)
6. Set a name, icon, RAM, and console type
7. Click Save, then right-click the node and click Start

If you’re starting from scratch with CCNA topics, our CCNA Lab Workbook gives you 40+ pre-built lab exercises with topology diagrams, configs, and verification steps. No time wasted figuring out what to practice. Just open a lab and go.

And if you want live instruction alongside your self-study, SMEnode Academy’s CCNA course combines live sessions with EVE-NG labs, so you get guided practice with an instructor alongside the self-paced workbook.

Frequently Asked Questions

Bottom Line

Adding EVE-NG images comes down to three things: get the folder prefix right, name the disk file right, and run fix_permissions after every upload.

The legal side is worth taking seriously, especially for Cisco images. For multi-vendor platforms, trial images from FortiGate, Palo Alto, Juniper, and Arista are freely available from each vendor’s portal. For Cisco, a used physical device plus its legitimate IOS download is the cleanest path.

Get the naming right once and you won’t have to think about it again. The table in this article covers every common device you’ll encounter in CCNA, CCNP, and most security certification labs.
